RICH SOLAR

Complete Off-Grid Solar Kit RS-H6548 | 8000W PV Input 48V 120VAC Output + 6560(16x410) Watt Solar PV

$10,500.00 $12,699.00

Popular right now
Lots of people have looked at this recently

Warranty Information

Warranty Guidelines vary based on the equipment. If you ever have any questions, reach out to support@outlandgrid.com anytime!

If you have a product that was purchased over 30 days ago and you suspect that the product has a defect and may need to be replaced, please contact either the Outland Energy team, or direct to RICH SOLAR Customer Support Department at support@richsolar.com. The Customer Support Department will determine if testing is needed and will further direct you to our Technical Support team.

Delivery and Shipping

We ship directly from U.S. warehouses to ensure fast, reliable delivery. Most orders are processed within 1–2 business days, with transit times depending on your location. Large batteries may ship freight for safe handling. Tracking details will be provided as soon as your order leaves our facility.

Trusted Solar for Every Adventure

Trusted by thousands of off-grid homeowners, RV travelers, and professionals, Rich Solar has built its reputation on durable, high-performance solar solutions. With years of proven reliability, quality-tested products, and strong customer support, you can count on Rich Solar to power your adventures with confidence.

Description

Everything you need to go completely off-grid!

Jumpstart your off-grid solar trailer adventure today.

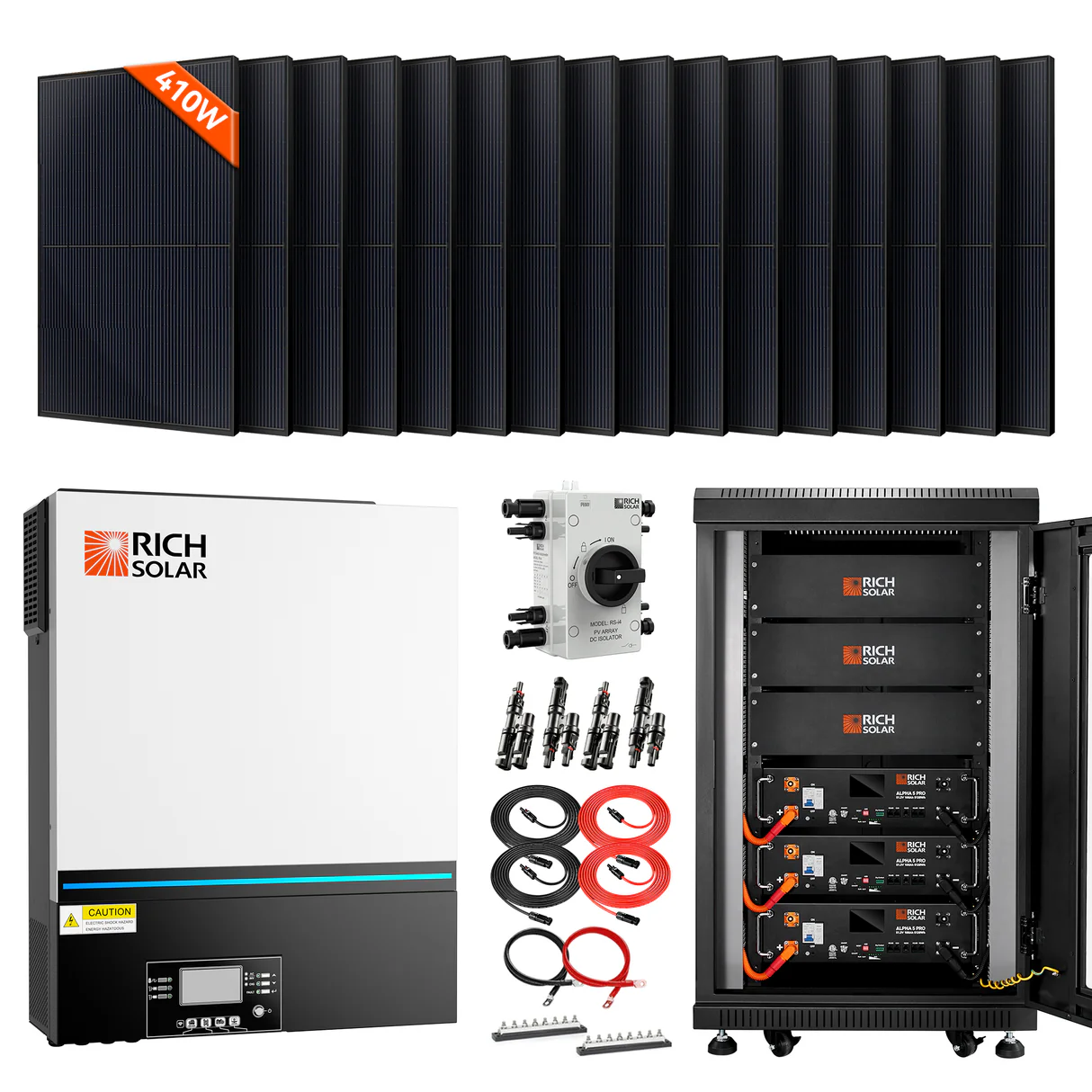

This kit includes:

  • 16 x MEGA 410 Watt Monocrystalline Solar Panels (RS-M410)
  • 1 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)
  • 3 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P)

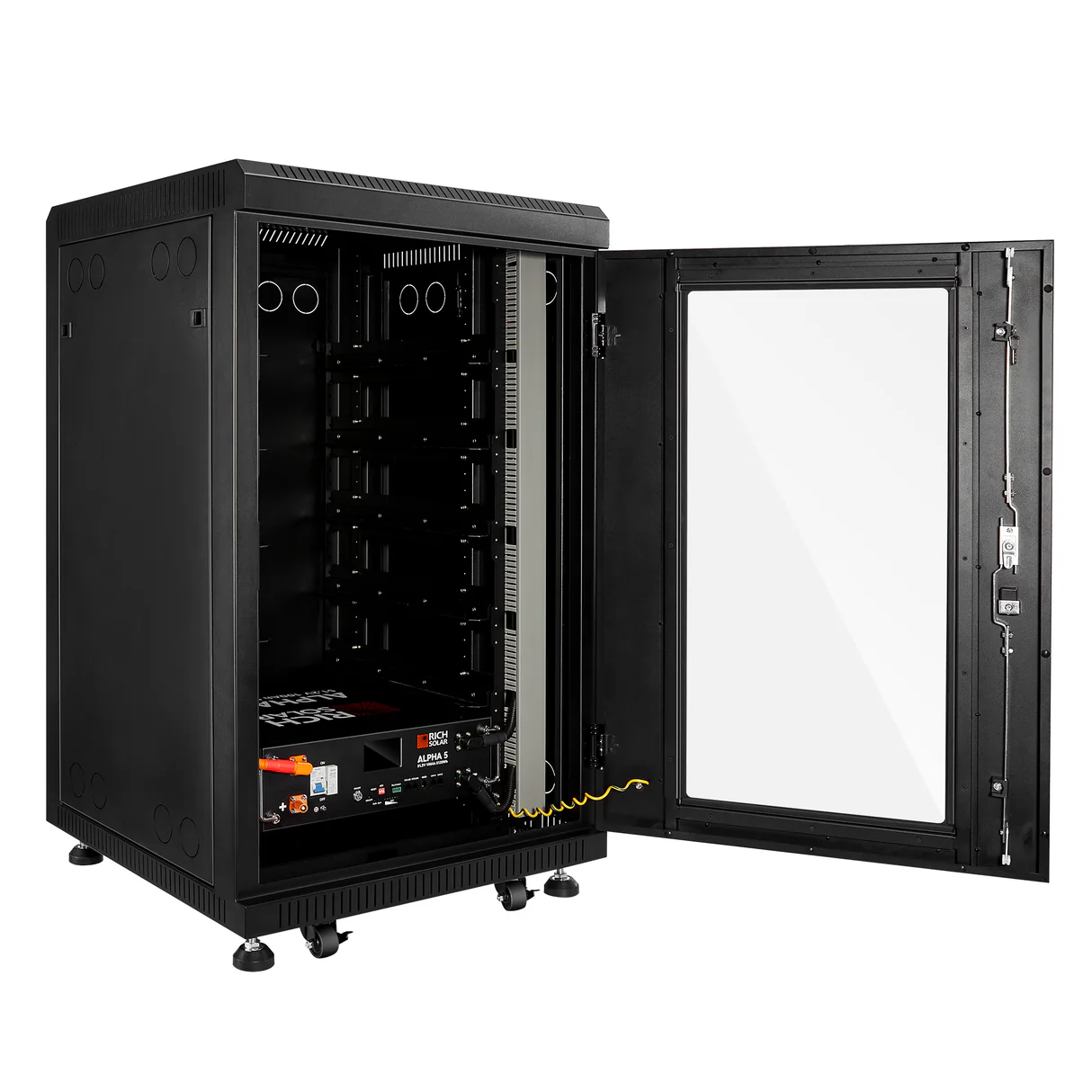

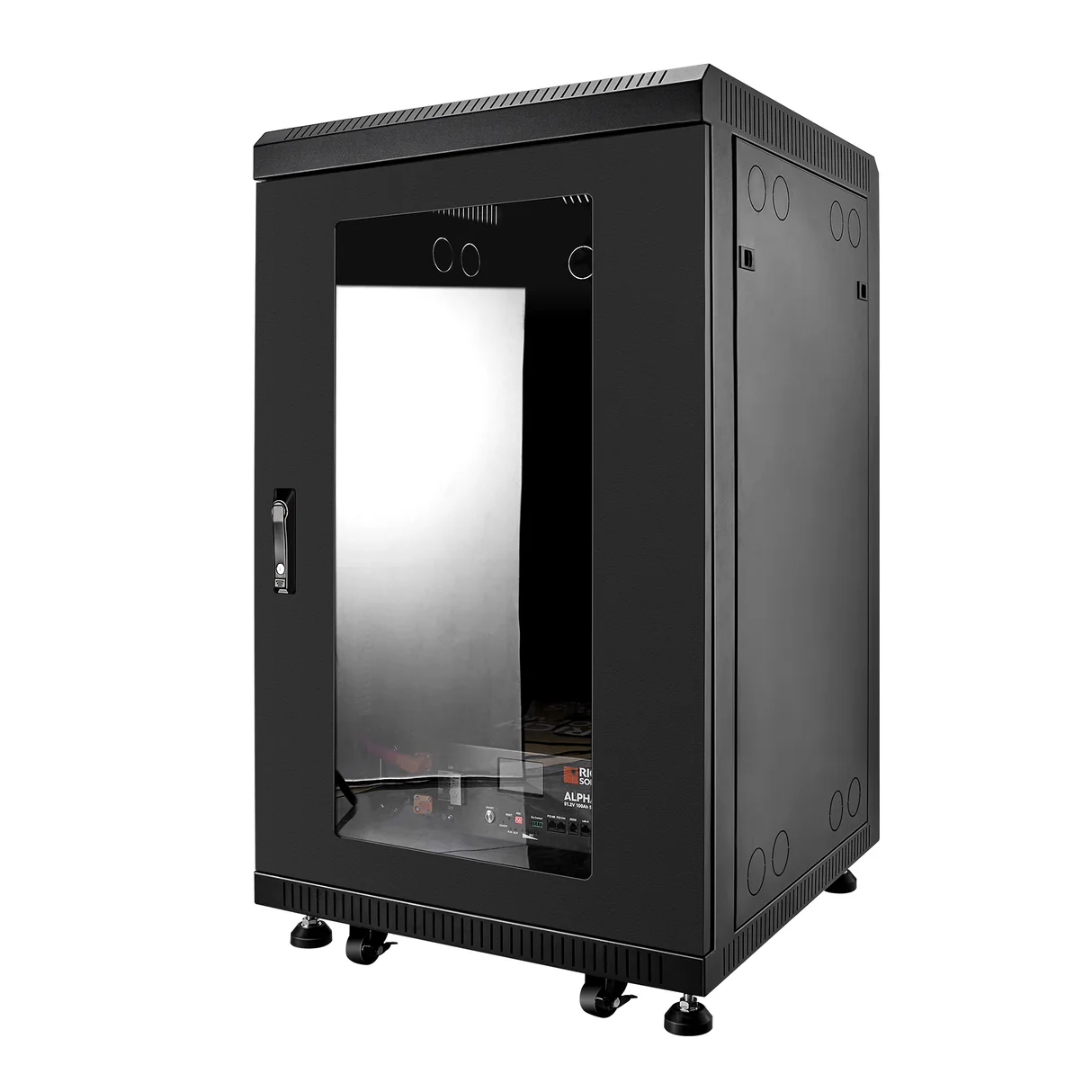

  • 1 x Free Battery Rack (RS-SRA5P)

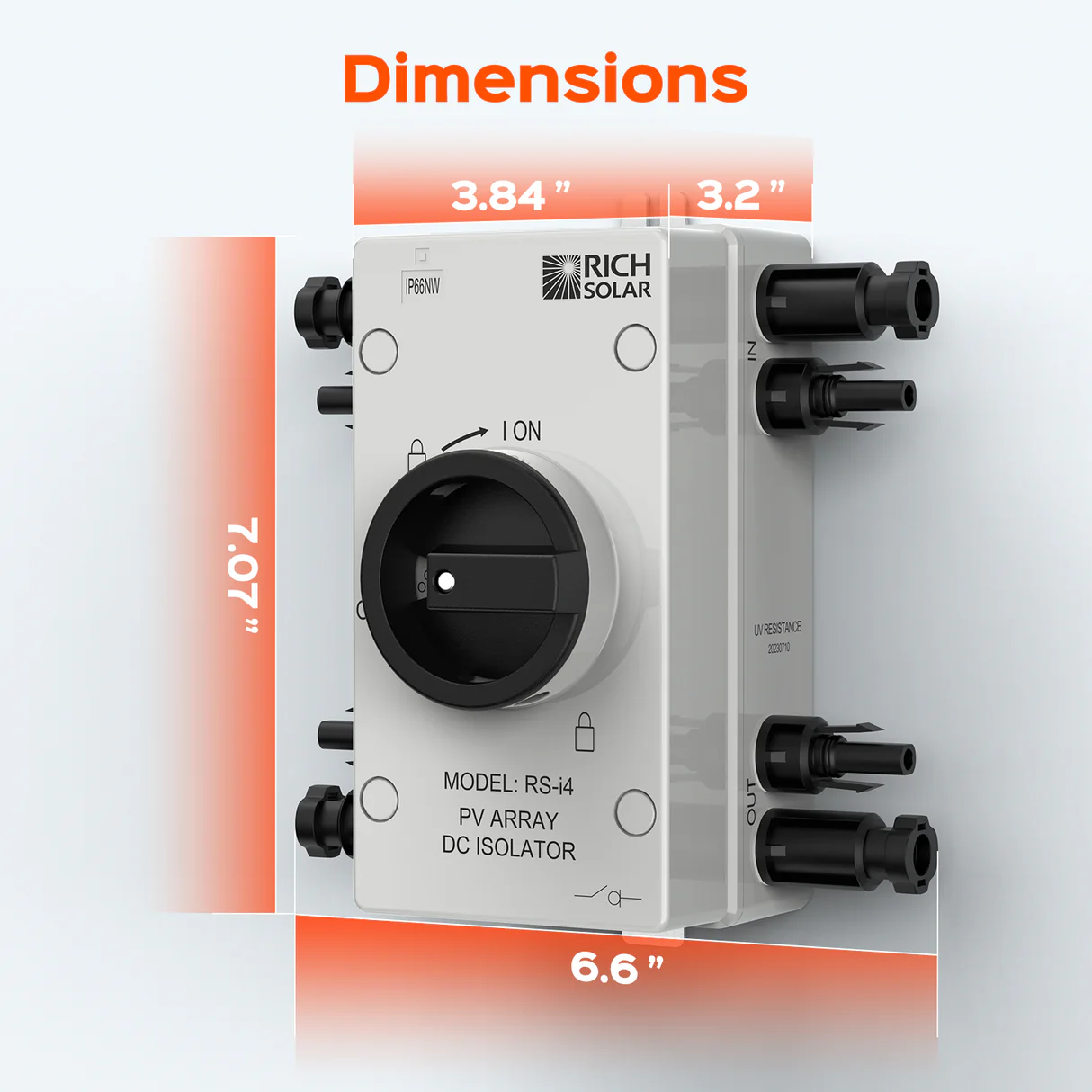

  • 1 x Solar PV DC Quick Disconnect Switch (RS-i4)
  • 2 x 4 Foot 2/0 Gauge AWG Wire Set 3/8" (RS-2/0A4F3)
  • 4 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)
  • 2 x Y Branch Parallel Connectors 2 to 1 (RS-T2)
  • 2 x Busbar 600 AMP

MEGA 410 Watt Solar Panels

The MEGA 410 maximizes power generation while minimizing space, equipment necessities, and cost by providing premium solar generation for off-grid systems. With the ability to generate 410W with 24V, the MEGA 410 can generate renewable energy and reduce electricity bills for any residential, agricultural, or commercial solar systems. Its anodized aluminum frame and tempered glass make it withstand any environment you put it in.

  • No. of Panels: 16 x MEGA 410 Watt Solar Panels
  • Wattage Per Panel: 410W
  • Total Wattage of Panels: 6560W

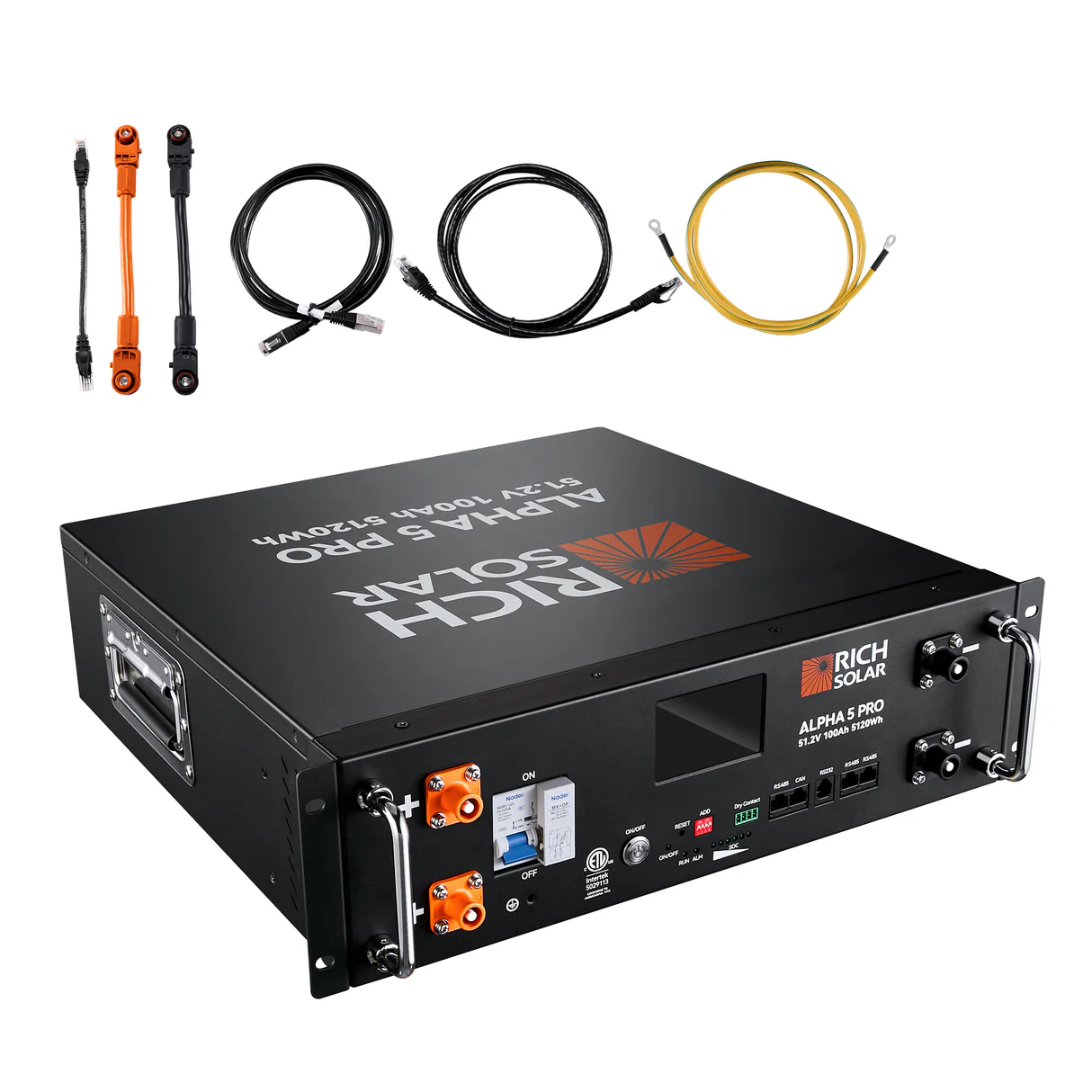

ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Battery

  • No. of Batteries: 3 x ALPHA 5 PRO 51.2V 100Ah LiFePO4 Lithium Batteries

Features:

  • Certification: UL1973, UL9540A, FCC
  • 7,000 Deep Cycles Life
  • 5120 Watt Hours Energy
  • 100A Continuous Charge Current
  • Compatible with multiple brands of inverters
  • Low maintenance
  • Over charging or discharging protection
  • Overcurrent & short circuit protection
  • Parallel up to 15 Batteries
  • Connect in Parallel for Larger Capacity
  • With Sophisticated Battery Management System (BMS)
  • 10 Years Lifespan

Warranty:

  • *10-Year Warranty

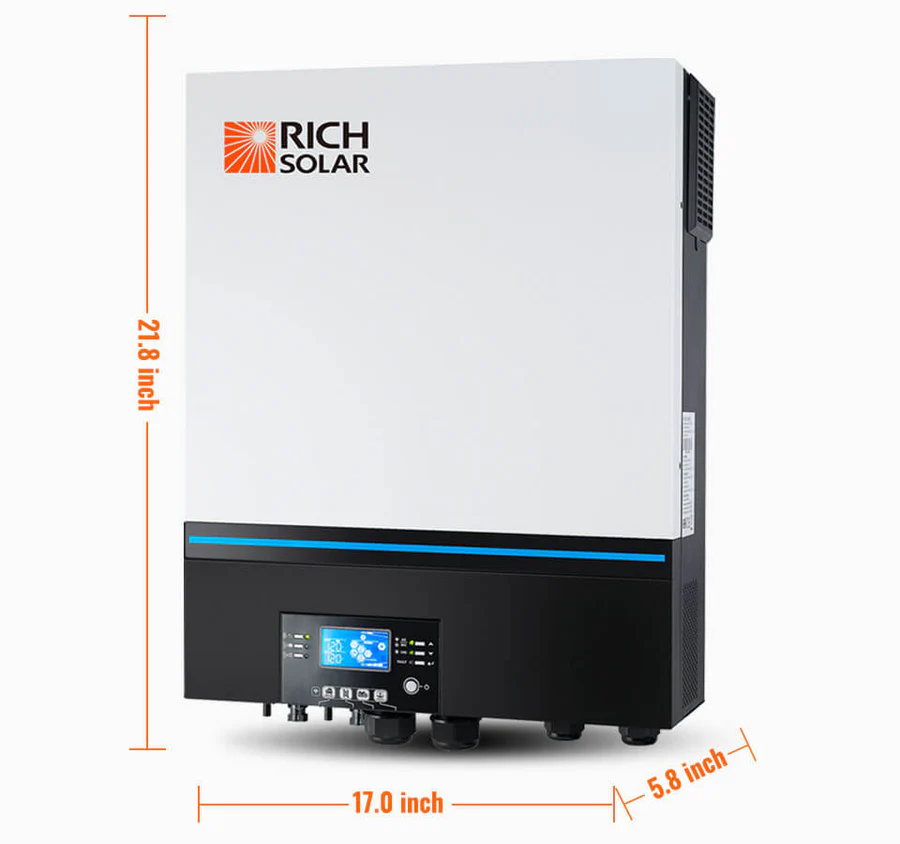

NOVA 6.5kW Inverter 48V Off-Grid Hybrid Solar Inverter

Features:

  • Pure Sine Wave Inverter
  • Configurable color with the built-in RGB LED bar
  • Built-in Wi-Fi for mobile monitoring (APP is required)
  • Supports USB On-the-Go function
  • Built-in anti-dusk kit
  • Detachable LCD control module with multiple communication ports for BMS (RS485, CAN-BUS, RS232)
  • Configurable input voltage ranges for home appliances and personal computers via LCD control panel
  • Configurable AC/PV output usage timer and prioritization
  • Configurable AC/Solar charger priority via LCD control panel
  • Configurable battery charging current based on applications via LCD control panel
  • Compatible with utility mains or generator power
  • Auto restart while AC is recovering
  • Overload/over temperature/short circuit protection
  • Parallel operation with 6 units
  • Smart battery charger design for optimized battery performance
  • Cold start function

Warranty:

  • 3-Year Warranty
