Hybrid Solar Kit 11.4KW 48V Split Phase 30.72KWH Lithium Battery 28 X 450 Watt Solar Panel
Hybrid Solar Kit 11.4KW 48V Split Phase 30.72KWH Lithium Battery 28 X 450 Watt Solar Panel is backordered and will ship as soon as it is back in stock.
Warranty and Support
Warranty and Support
All of our equipment is backed by manufacturer warranties ranging from 2 to 11 years (varies by brand). Each unit includes built-in safety features and protections. If you experience an issue, our support team is here to help with troubleshooting, warranty claims, or replacement guidance. You can rest easy knowing your investment is protected for the long haul.
Reach out to support@outlandgrid.com for any questions or concerns!
Delivery and Shipping
Delivery and Shipping
We ship directly from U.S. warehouses to ensure fast, reliable delivery. Most orders are processed within 1–2 business days, with transit times depending on your location. Large batteries may ship freight for safe handling. Tracking details will be provided as soon as your order leaves our facility.
Hybrid Solar Kit 11.4KW 48V Split Phase 30.72KWH Lithium Battery 28...
Power Without Compromise
Known for dependable off-grid inverters and solar solutions, Sungold Power delivers high-performance equipment built for efficiency and reliability. With a focus on powerful output, smart features, and rugged design, Sungold Power keeps your home, cabin, or business running smoothly when it matters most.
Description
Description

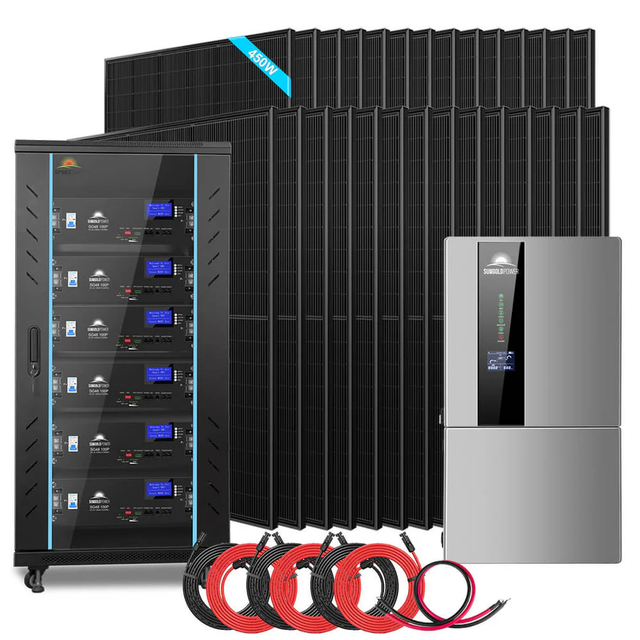

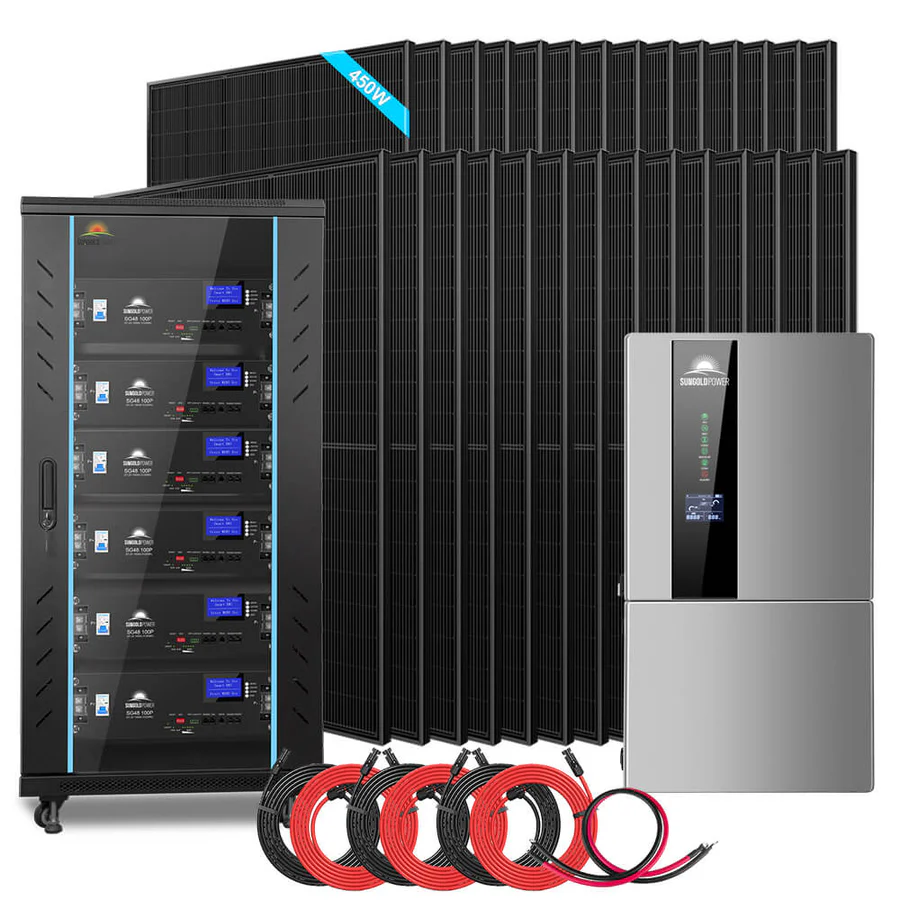

This Hybrid Solar Kit packs serious power with 12,600W of solar panels, an 11.4kW hybrid inverter, and 30.72kWh of lithium battery storage. Designed for ultimate flexibility, it works in off-grid, hybrid, or grid-tied setups—letting you run appliances directly from the sun, send excess energy back to the grid, and store power for reducing energy bills or keeping your home running during outages.
Specs for everything in this kit:

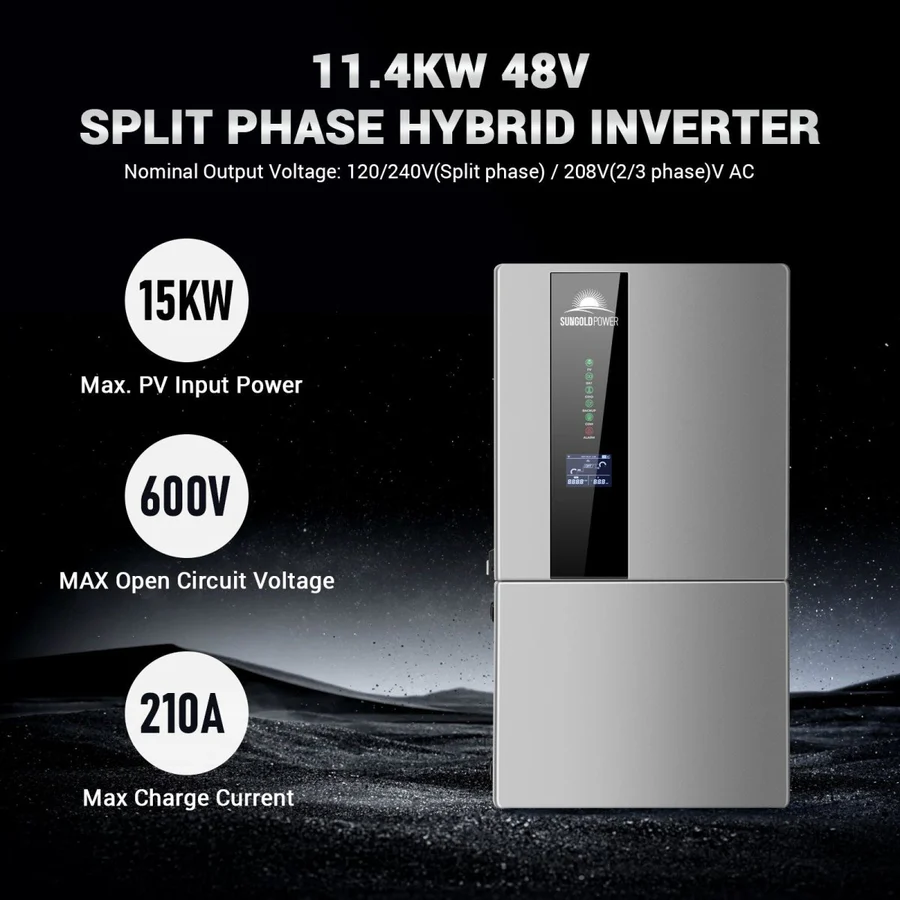

11.4KW Hybrid Solar Inverter
| AC Output | 11,400w |
| Output Waveform | Pure Sine Wave |
| AC Output | 120/240v (Split)/208v (2/3 Phase VAC) |
| Max PV Input | 600 vdc |
| Max PV Input (Watts) | 15,000w |
| Max Charging Current | 210a |
| Max Input Current per MPPT | 30a/22a/22a |
| Nos. of MPPT | 3 |
| Dimensions | 16.5 x 31.5 x 9.4 |
| Warranty | 10 Years |

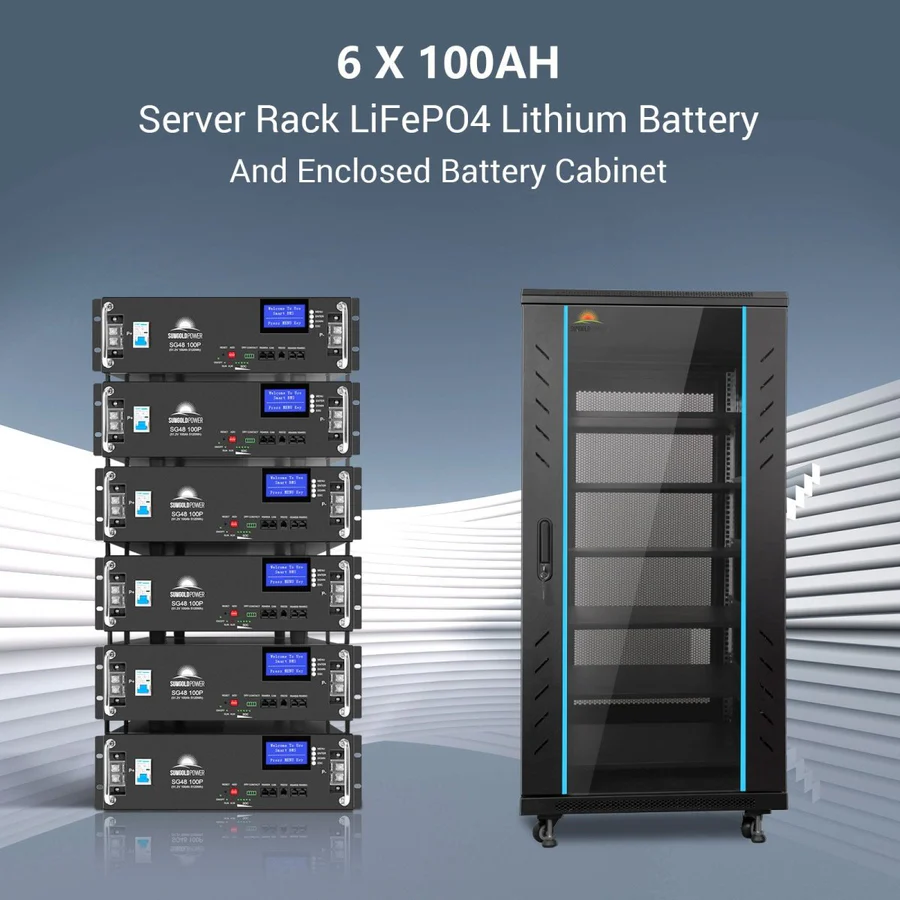

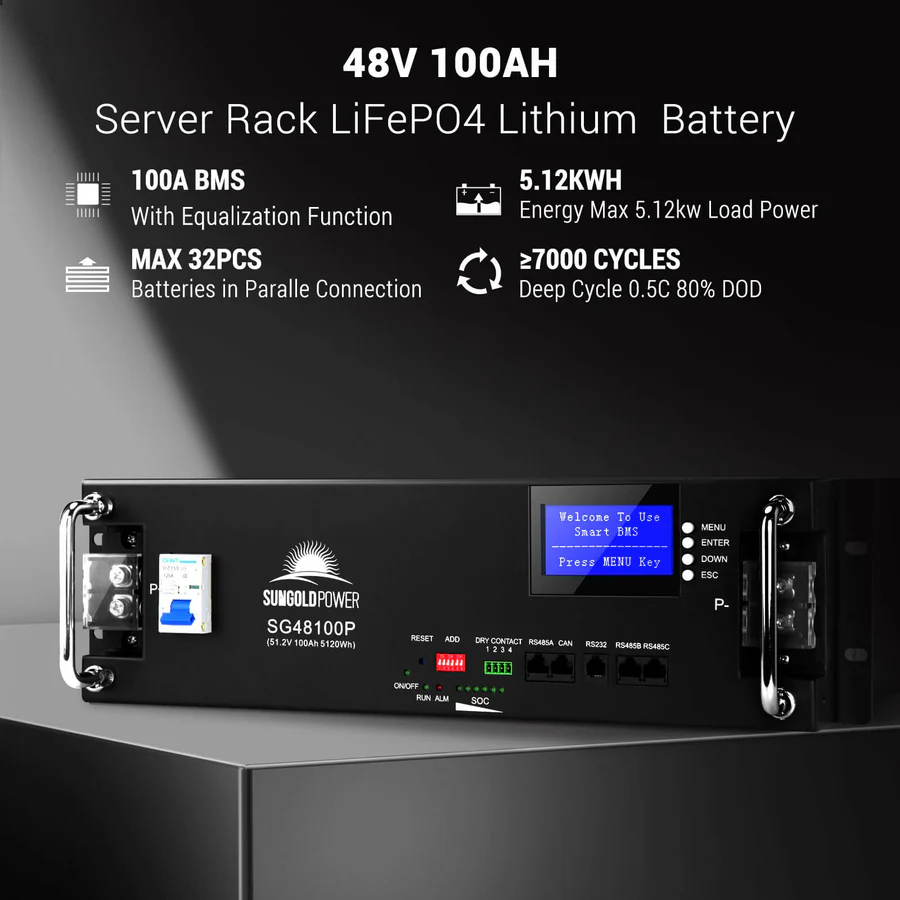

SG48100P LifePO4 Battery
| Nominal Voltage | 51.2v |
| Nominal Capacity | 100ah |
| Energy | 5.12KwH |
| Charge Cut-Off Current | 5a |
| Max Continuous Charge Current | 100a |
| Discharge Cut-Off Current | 43.2v |
| Cycle Life | 7,000 Cycles+ |
| Communications | RS232 / RS485 |
| Storage Temp | 14-113 Degrees Fahrenheit |
| Weight | 93 lbs |
| Warranty | 10 Years |

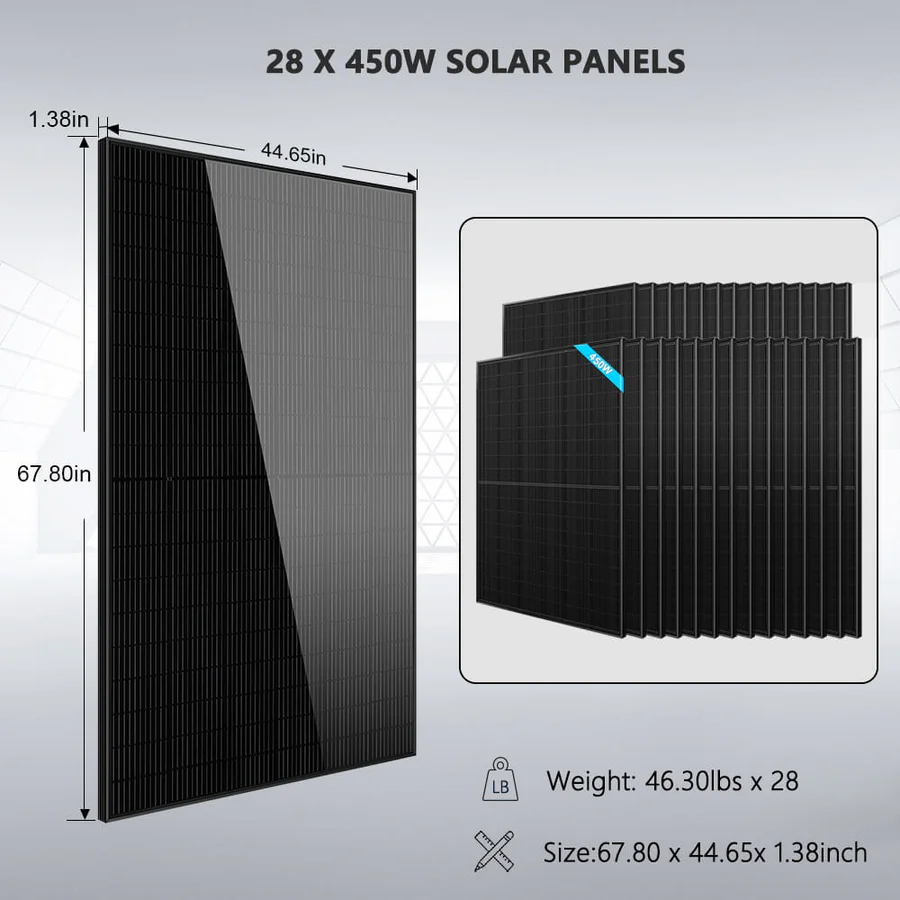

450 Watt BiFacial N-Type Solar Panel
| Peak Power | 450w |
| Solar Cell | Bifacial N Type |
| Product Tolerance | +/- 3% |
| Maximum Power Current (IMP) | 13.41a |
| Maximum Power Voltage (VMP) | 33.57v |
| Short Circuit Current (ISC) | 14.04a |
| Open Circuit Voltage (VOC) | 39.54v |
| Dimensions | 68" x 45" x1.5" |
| Weight | 47 lbs |
| Warranty | 25 Years |
