1250W 48VDC-120VAC Solar Kit

Name: 1250W 48VDC-120VAC Solar Kit
Brand: RICH SOLAR
Price: 4700.00 USD
Availability: InStock

$4,700.00 $4,999.00

Popular right now
Lots of people have looked at this recently

Warranty Information

Warranty Guidelines vary based on the equipment. If you ever have any questions, reach out to support@outlandgrid.com anytime!

If you have a product that was purchased over 30 days ago and you suspect that the product has a defect and may need to be replaced, please contact either the Outland Energy team, or direct to RICH SOLAR Customer Support Department at support@richsolar.com. The Customer Support Department will determine if testing is needed and will further direct you to our Technical Support team.

Delivery and Shipping

We ship directly from U.S. warehouses to ensure fast, reliable delivery. Most orders are processed within 1–2 business days, with transit times depending on your location. Large batteries may ship freight for safe handling. Tracking details will be provided as soon as your order leaves our facility.

Trusted Solar for Every Adventure

Trusted by thousands of off-grid homeowners, RV travelers, and professionals, Rich Solar has built its reputation on durable, high-performance solar solutions. With years of proven reliability, quality-tested products, and strong customer support, you can count on Rich Solar to power your adventures with confidence.

Description

Looking for the best off-grid solar system? Our Cabin Kits are perfect for tiny homes, RVs, and many more off-grid applications. Start your solar adventure today with a great camper solar setup!

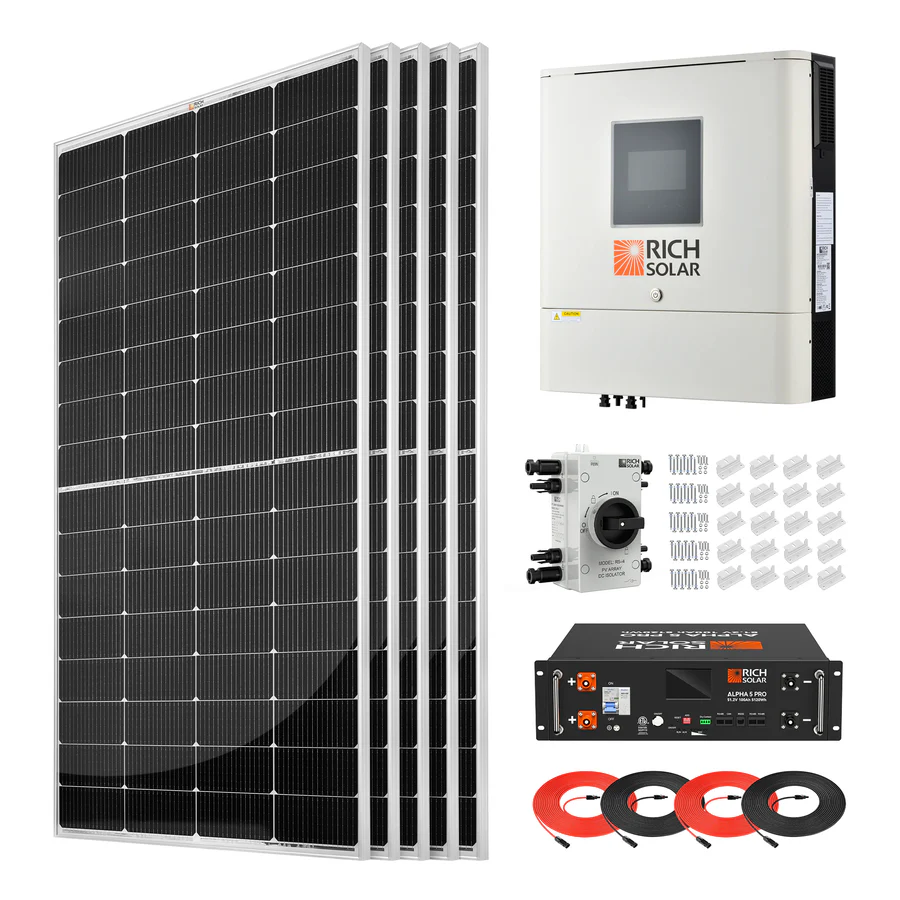

This kit includes:

1 x 6500W 48V Off-grid Solar Inverter (H6548S)
5 x MEGA 250W Monocrystalline Panel (RS-M250)
1 x ALPHA 5 PRO 5.12kWh Server Rack Lithium Batter(RS-B5121P)
1 x 10AWG 30FT Extension Cable (RS-30102)
1 x 10AWG 10FT Extension Cable (RS-10102)
8 x Z-Brackets (RS-ZB4C)
1 x PV DC Quick Disconnect (RS-i4)

MEGA 250 Watt Solar Panel

No. of Panels: 5 x MEGA 250Watt Solar Panels
Wattage Per Panel: 250W
Total Wattage of Panels: 1250W

Features:

16-busbar solar cell configuration
Lightweight anodized aluminum frame
High Transmission, AR (anti-reflective) Coated Tempered Glass
Plug and play junction box
Industry standard quick-connect cables work in series or parallel
Certified to withstand challenging environmental conditions
Excellent low-light performance on cloudy days, mornings and evenings

Warranty:

25-year output warranty
10-year workmanship warranty

Specifications:

Model: RS-M250
Maximum Power (Pmax): 250W
Maximum Power Voltage (Vmp): 18.9V
Maximum Power Current (Imp): 13.2A
Open Circuit Voltage (Voc): 22.8V
Short Circuit Current (Isc): 13.7A
Maximum System Voltage (Vmax): 1500VDC
Temperature Range: -40 ~ +185℉
Weight: 26.9 lb
Dimensions: 60.6 x 29.9 x 1.2 in

ALPHA 5 PRO 51.2V 100Ah LiFePO4 Battery

Features:

Certification: UL1973, UL9540A, FCC
7,000 Deep Cycles Life
5120 Watt Hours Energy
100A Continuous Charge Current
Compatible with multiple brands of inverters
Low maintenance
Over charging or discharging protection
Overcurrent & short circuit protection
Parallel up to 15 Batteries
Connect in Parallel for Larger Capacity
With Sophisticated Battery Management System (BMS)
10 Years Lifespan

Warranty:

*10-Year Warranty

Specifications:

Electrical Specifications

Nominal Voltage: 51.2V
Nominal Capacity: 100Ah
Minimum Capacity: 99.5Ah
Nominal Capacity: 5120Wh

Operating Specifications

Charging Voltage: 56V
Discharging Cutoff Voltage: 44.8V
Maximum Charging Current: 100A
Continuous Charge Current: 100A
Maximum Discharge Current: 100A

Physical Specifications

Battery Dimensions: 17.7"L x 17.8"W x 5.2"H
Battery Weight: 99.2 lb
Server Rack Dimensions: 27.5"L x 27.5"W x 44.1"H (Doesn't include the height of wheels)
Server Rack Weight: 196.2 lb

BMS Operation

Operation Voltage: 43.2~58.4V
Maximum Charging Current: 100A
Maximum Discharging Current: 100A
Maximum Charge Voltage (CC/CV): 57.6V
Overcharge Protection Voltage (Battery): 58.4V
Overcharge Protection Release Voltage (Battery): 54V
Over Discharge Protection Voltage (Battery): 43.2V
Over Discharge Protection Release Voltage (Battery): 47.2V
Over Discharge Primary Charge Overcurrent Protection Value: 110A
First Stage Charge Over Current Delay: 1s
Primary Discharge Overcurrent Protection Value: 110A
Primary Discharge Overcurrent Protection Delay: 1s
Secondary Discharge Overcurrent Protection Value: 150A
Secondary Discharge Overcurrent Protection Delay: 500ms

Temperature Performance

Charge Temperature: 0.1C@(32℉~50℉); 0.2C@(50℉~68℉); 0.5C@(68℉~77℉); 1C@(77℉~113℉); 0.3C@(113℉~131℉); 0.2C@(131℉~140℉);
Discharge Temperature: -4℉~149℉ (The surface temperature of the cell should not exceed 149℉)
Storage Temperature: -4℉~113℉ 90%RH Max(1 month); 32℉~95℉ 90RH Max(6 Months)
Recommended Storage Temperature: 32℉~113℉ 85%RH Max (The battery life would be reduced if the battery is stored at a high temperature)

Others

Certification: UL1973, UL9540A, FCC
Max. Expansion: 15 pcs in parallel
Communication Ports: RS485/RS232/CAN
Warranty: 10 Years Manufacturer Defect

NOVA 6500S 48V Off-grid Solar Inverter

Features:

UL Certification
Status indication with RGB lights
Built-in Wi-Fi for mobile monitoring (Android/iOS)
Supports USB on-the-go function
Data log events stored in the inverter
Reserved communication port for BMS (RS485, CAN-BUS or RS232)
Replaceable fan design for ease of maintenance
Battery independent design
Configurable AC/PV output usage timer and prioritization
Adjustable high-power charging current
Adjustable input voltage range for home appliances and personal computers
Compatible with Utility Mains or generator input
Built-in anti-dust kit
Optional DC output for DC fan, LED bulb, router, etc.
6-unit parallel operation capabilities

Warranty:

3-Year Warranty

Specifications:

Model: RS-H6548S
Rated Inverter Power: 6500VA/6500W
PARALLEL CAPABILITY: Yes, 6 units

INPUT

Voltage: 120 VAC
Selectable Voltage Range: 90-140 VAC (For Computers), 80-140 VAC (For Home Appliances)
Frequency Range: 50 Hz/60 Hz (Auto Sensing)

OUTPUT

AC Voltage Regulation (Batt. Mode): 120 VAC ± 5%
Surge Power: 13000VA
Efficiency (Peak): 91%
Transfer Time: 10 ms (For Personal Computers), 20 ms (For Home Appliances)
Waveform: Pure Sine Wave
No Load Power Consumption: <75W
DC Voltage: 12 VDC ± 5%, 100W

BATTERY

Battery Voltage: 48 VDC
Float Charging Voltage: 54 VDC
Overcharge Protection: 66 VDC

SOLAR CHARGER & AC CHARGER

Solar Charger Type: MPPT
Maximum PV Array Power: 8000W (4000W x 2)
MPPT Operating Voltage Range: 90 ~ 230 VDC
Maximum PV Array Open Circuit Voltage: 250 VDC
Maximum Solar Charge Current: 120A
Maximum AC Charge Current: 120A
Maximum Charge Current: 120A

PHYSICAL

Dimension (D x W x H): 6.2 x 19.8 x 20.9 in
Net Weight: 44 lb
Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact

OPERATING ENVIRONMENT

Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: 14°F to 104°F
Storage Temperature: 5°F to 140°F

STANDARD

Compliance Safety: UL
