1200 Watt 24V Complete Solar Kit

Name: 1200 Watt 24V Complete Solar Kit
Brand: RICH SOLAR
Price: 4250.00 USD
Availability: InStock

$4,250.00 $4,499.00

Popular right now
Lots of people have looked at this recently

Warranty Information

Warranty Guidelines vary based on the equipment. If you ever have any questions, reach out to support@outlandgrid.com anytime!

If you have a product that was purchased over 30 days ago and you suspect that the product has a defect and may need to be replaced, please contact either the Outland Energy team, or direct to RICH SOLAR Customer Support Department at support@richsolar.com. The Customer Support Department will determine if testing is needed and will further direct you to our Technical Support team.

Delivery and Shipping

We ship directly from U.S. warehouses to ensure fast, reliable delivery. Most orders are processed within 1–2 business days, with transit times depending on your location. Large batteries may ship freight for safe handling. Tracking details will be provided as soon as your order leaves our facility.

Trusted Solar for Every Adventure

Trusted by thousands of off-grid homeowners, RV travelers, and professionals, Rich Solar has built its reputation on durable, high-performance solar solutions. With years of proven reliability, quality-tested products, and strong customer support, you can count on Rich Solar to power your adventures with confidence.

Description

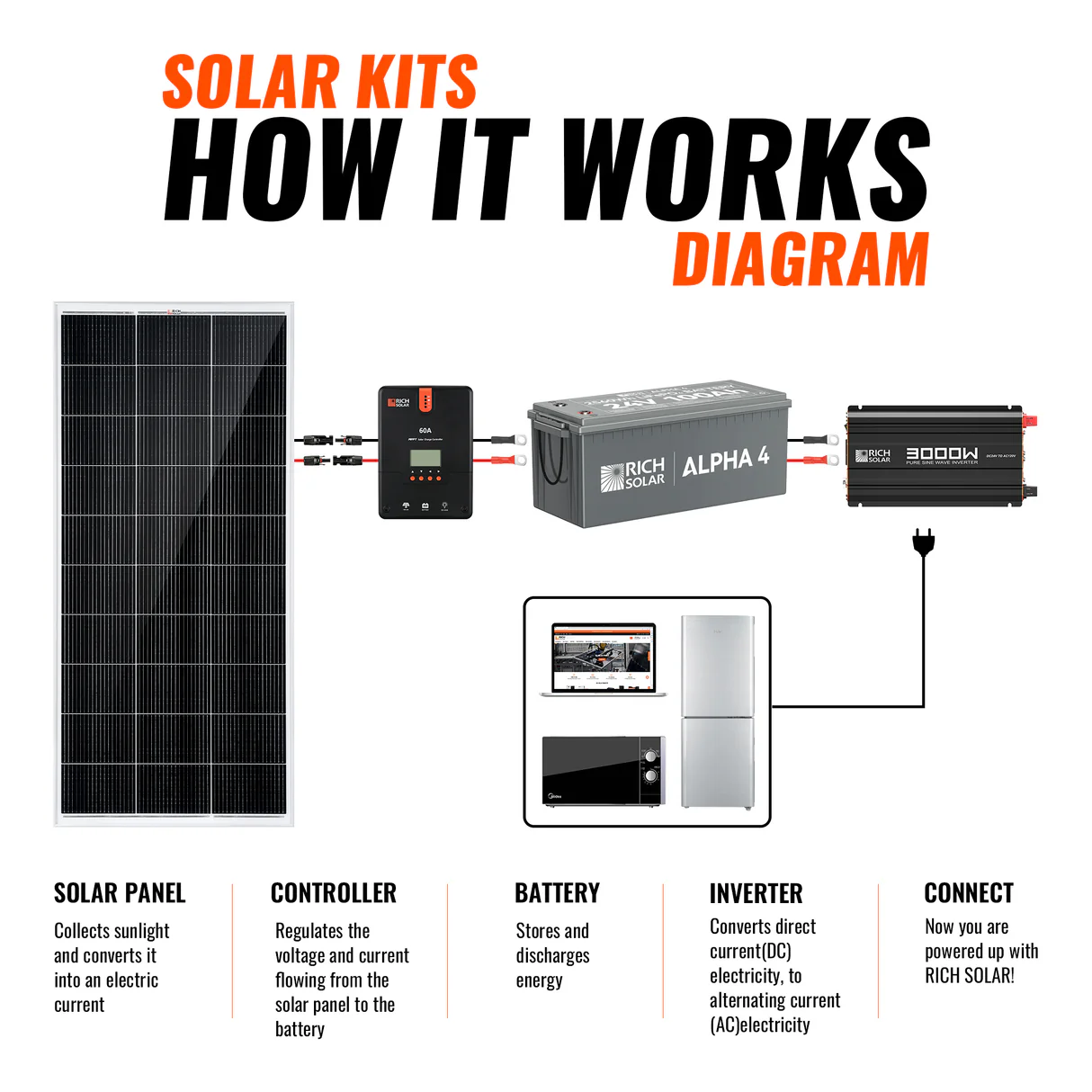

Our 1200W 24V Complete Solar Kit provides all the essential components to harness, store, and utilize solar energy. This comprehensive kit includes six high-efficiency 200W Monocrystalline panels, a 60A MPPT controller, a 3000W 24V inverter, and two ALPHA 4 Lithium batteries. Ideal for installation on your RV or tiny home, this kit equips you with everything you need to embark on your solar adventure with ease.

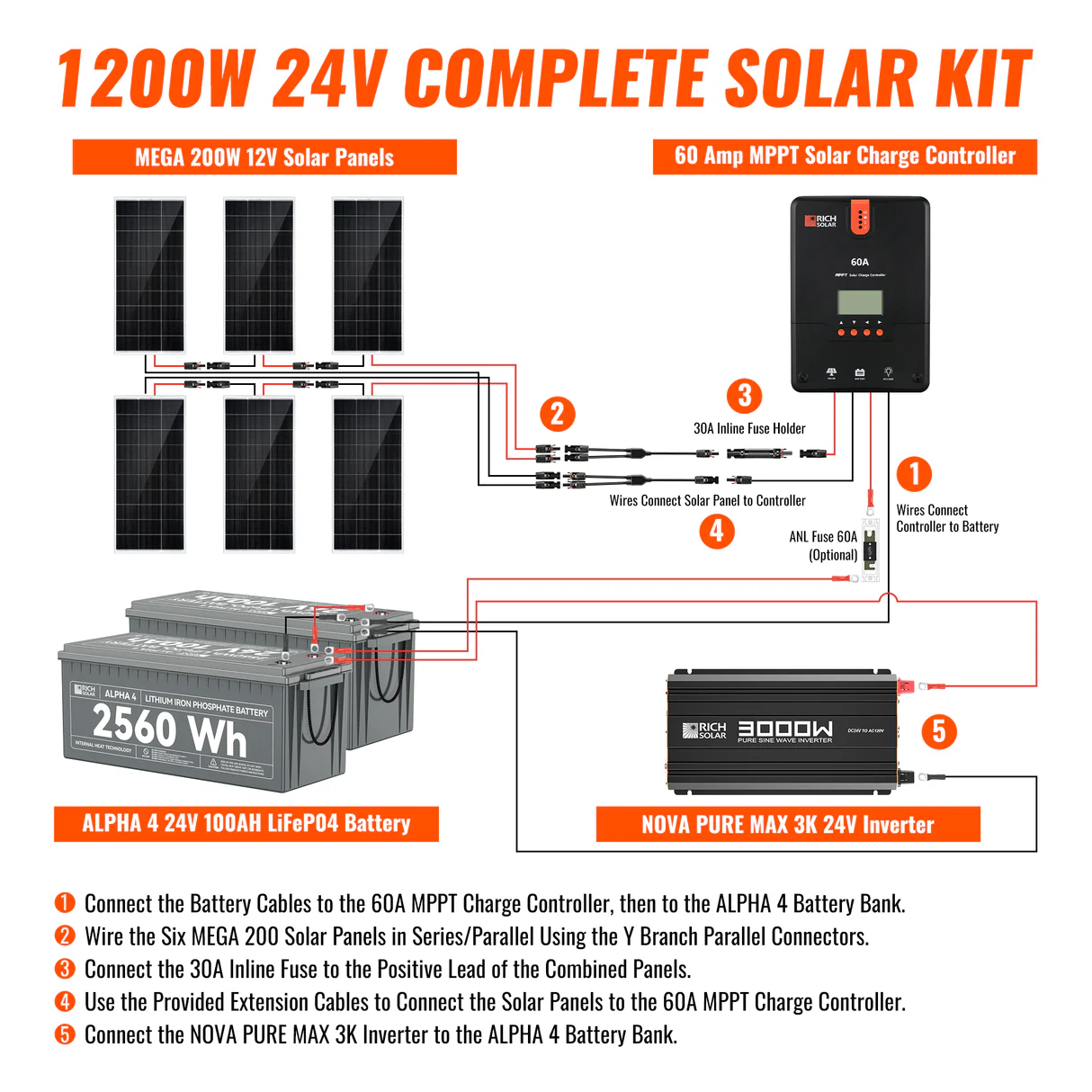

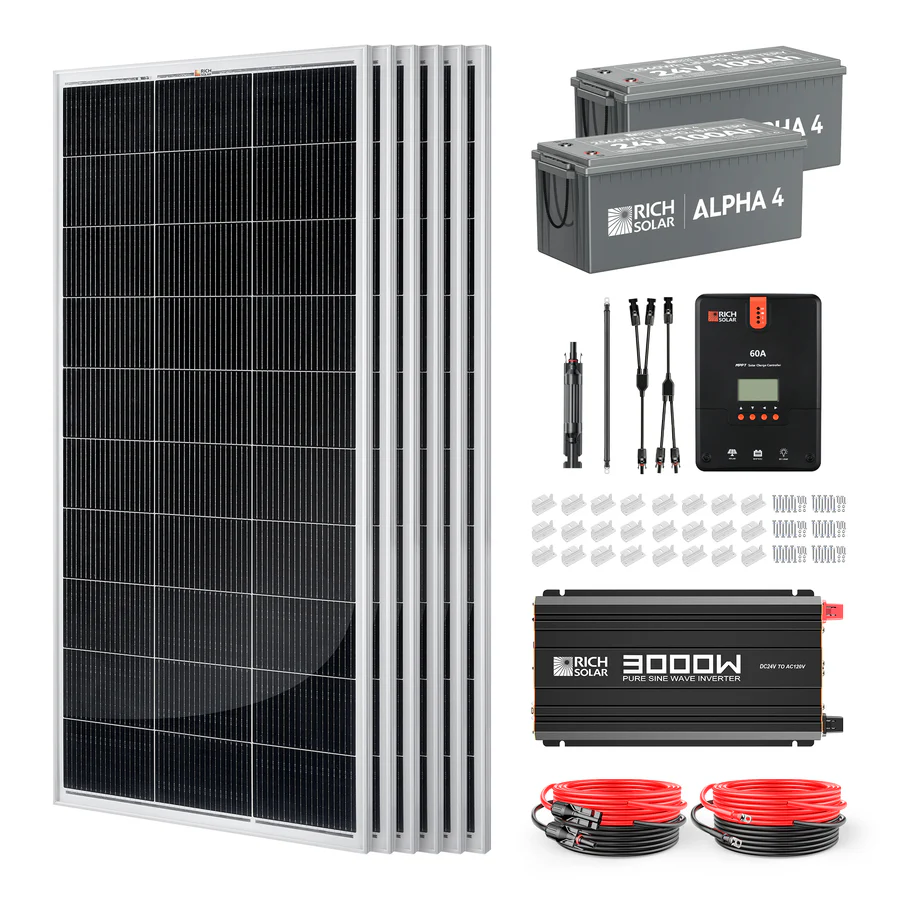

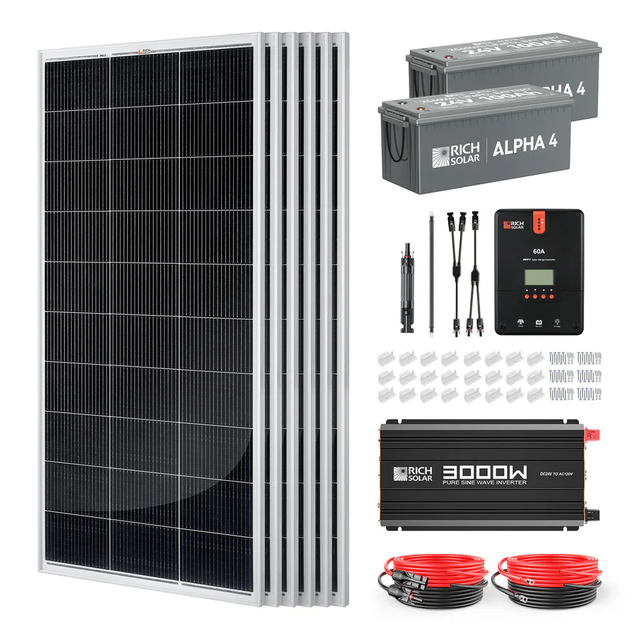

Kit Includes:

6 x MEGA 200W 12V Panel (RS-M200)
2 x ALPHA 4 Lithium Battery (RS-B241S)
1 x NOVA 3000W 24V Inverter (RS-V3P24)
1 x 60A MPPT Charge Controller (RS-MPPT60)
6 x Z Bracket Set (RS-ZB4C)
1 x 30A Inline Fuse Holder (RS-SC30F)
1 x Y Branch Parallel Adapter (RS-Y2)
1 x 2 Gauge 1 FT Inverter Battery Cable Red (RS-C21R)
1 x 2 Gauge 1 FT Inverter Battery Cable Black (RS-C21B)
1 x 30' 10 AWG Solar Cable Set (Panel to Controller) (RS-30101)
1 x 10' 8 AWG Solar Cable Set (Controller to Battery) (RS-810)
1 x 4 AWG 8 FT Battery Cable Set (RS-C48B & RS-C248R)

MEGA 200 Watt Solar Panel

The MEGA 200 Solar Panel offers premium solar production for RVs, boats, cabins, and more. Start on your off-grid solar journey with RICH SOLAR today.

No. of Panels: 6 x MEGA 200 Watt Solar Panels
Wattage Per Panel: 200W
Total Wattage of Panels: 1200W

Features:

Generates 10.9 amps of power, charges 12-volt batteries, 3' quick connect cables with connectors, and works in series or parallel.
Excellent low-light performance even on early mornings, evenings, and cloudy days.
Built with strong high transmission “anti-reflective” coated tempered glass, and an anodized aluminum frame.
Fast and easy installation thanks to 14 pre-drilled holes; compatible with standard Z-brackets, ground mounts, side pole mounts, and tilt mounts.
25-year limited warranty for power output; 10-year workmanship warranty.

Installation:

Easy installation and handling for various applications (high-end off-grid and mobile applications)
Pre-drilled holes compatible with ground mounts, Z brackets, pole mounts, and tilt mounts
Compatible with on-grid and off-grid inverters

Warranty:

25-year limited power output warranty
10-year workmanship warranty

Specifications:

Maximum Power(Pmax): 200W
Maximum Power Voltage(Vmp): 18.4V
Maximum Power Current(Imp): 10.9A
Open Circuit Voltage(Voc): 21.8V
Short Circuit Current(Isc): 11.6A
Temperature Range: -40 ~ +185°F
Maximum Series Fuse Rating: 15A
Weight: 24 lb
Dimensions: 58.7 x 26.8 x 1.2 in

Alpha 4 24V 100Ah LiFePO4 Battery

Features:

Stay powered in low temps with advanced internal heating tech
Track battery health in real time from your phone
Over 5,000 cycles with UL94 V-0 flame-retardant protection
IP65 waterproof, dustproof, and tested for extreme safety
Free of toxic metals—safe for you and the planet
Lightweight design, heavy-duty performance
ALPHA Series | Backed by a 5-Year Warranty for Long-Term Peace of Mind

Warranty:

*5-Year Warranty

Specifications:

4°F to 140°F (-20°C to 60°C)

Battery

Cell Type: Lifepo4 Battery
Nominal Voltage: 25.6V
Nominal Capacity: 100Ah
Nominal Energy: 2560Wh
Cycle Life: 5000 Cycles

BMS

BMS: 100A
Maximum Charging Current: 100A
Maximum Continuous Discharge Current: 100A
Maximum Discharge Current 10 Seconds: 110A

Charge

Charge Method: CC/CV
Charge Voltage: 14.4V ± 0.2V
Recommend Charge Current: 50A (0.5C)

Temperature

Charge Temperature: 32℉ to 131℉ (0℃ to 55℃)
Discharge Temperature: -4℉ to 140℉ (-20℃ to 60℃)
Storage Temperature: 14℉ to 95℉ (-10℃ to 35℃)

Self-heating

External Power Draw: 100W
Internal Heating Starts: < 41°F (5°C)
Internal Heating Stops: > 50°F (10°C)

Others

Net Battery Weight: 48.5lb
Size(LxWxH): 20.9x8.1x8.5in
Housing Material: ABS (Flame Retardant Plastic)
Protection Class: IP65
Warranty: 5 Years

NOVA PURE MAX 3000W (3kW) 24V Industrial Pure Sine Wave Inverter

Features:

Electronic overload protection with automatic shutdown.
Built-in internal backup DC fuse provides added safety.
Low battery voltage protection with automatic shutdown.
Over-temperature protection with automatic shutdown.
Output short-circuit protection.

Warranty:

2-Year Warranty

Specifications:

Model: RS-V3P24
Rated Voltage: 24V DC
Continuous Power: 3000W
Peak Surge: 6000W
Waveform: Pure Sine Wave
Input Voltage: 24V DC
Output Voltage: 120V AC
Output Frequency: 60 Hz
Output Efficiency: ＞88%
AC Output Sockets: 3
USB Power Port: 5V / 2.1A
Power Output Control: AC On/Off Switch
Operating Temperature: 14°F to 122°F
Dimensions: 18.7 x 9.6 x 4.0 (in) / 475 x 245 x 102 (mm)
Weight: 12.1 (lb) / 5.5 (kg)

60 Amp MPPT Solar Charge Controller

Features:

Automatically detects 12V/24V/36V/48V DC system voltages.
Compatible with various deep cycle battery options: Sealed, Gel, Flooded, and Lithium.
Innovative MPPT technology with high tracking efficiency up to 99% and peak conversion efficiency of 98%.
Electronic protection against reverse polarity, overcharging, over-discharging, overload, short-circuiting, and reverse current.
LCD screen and multiple LED indicators for displaying system operation information, customizable parameters, and error codes.
Features diverse load control; also capable of charging over-discharged lithium batteries.
Die-cast aluminum design allows for efficient heat dissipation.
RS232 port for communicating with BT-1 Bluetooth module.

Warranty:

2-Year Warranty

Specifications:

Rated Battery Current: 60A
Rated Load Current: 20A
Max Solar Input Voltage: 150V(77℉), 145V(-13℉)
Max Solar Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V
Charge Circuit Voltage Drop: ≤0.26V
Discharge Circuit Voltage Drop: ≤0.15V
Operating Temperature: -31°F to 113°F
Max Terminal Size: <11mm
Overall Dimensions: 11.2 x 8.1 x 3.7 in
Net Weight: 7.94 lb
